Pro-Tek

Frame Protectors


Review:

Install of the Pro-Tek Frame Protectors require that both sides of the TL1000R bodywork be cut.  Install is very simple as far as mounting.  On the left side, remove the rear upper-mounting bolt.  On the right, remove the one visible below the coolant overflow bottle.  There are instructions for cutting the hole included, but it's nothing more than putting some play-dough on the panels and pressing them against the brackets mounted and see where the imprint is.  Then, drill a small hole to confirm you are centered before doing the final cut.

Quality is very good.  Mounting seems very solid.

Really sorry I can't show you them mounted, but I really don't want to cut my panels.



Click Thumbnail for Larger Photo

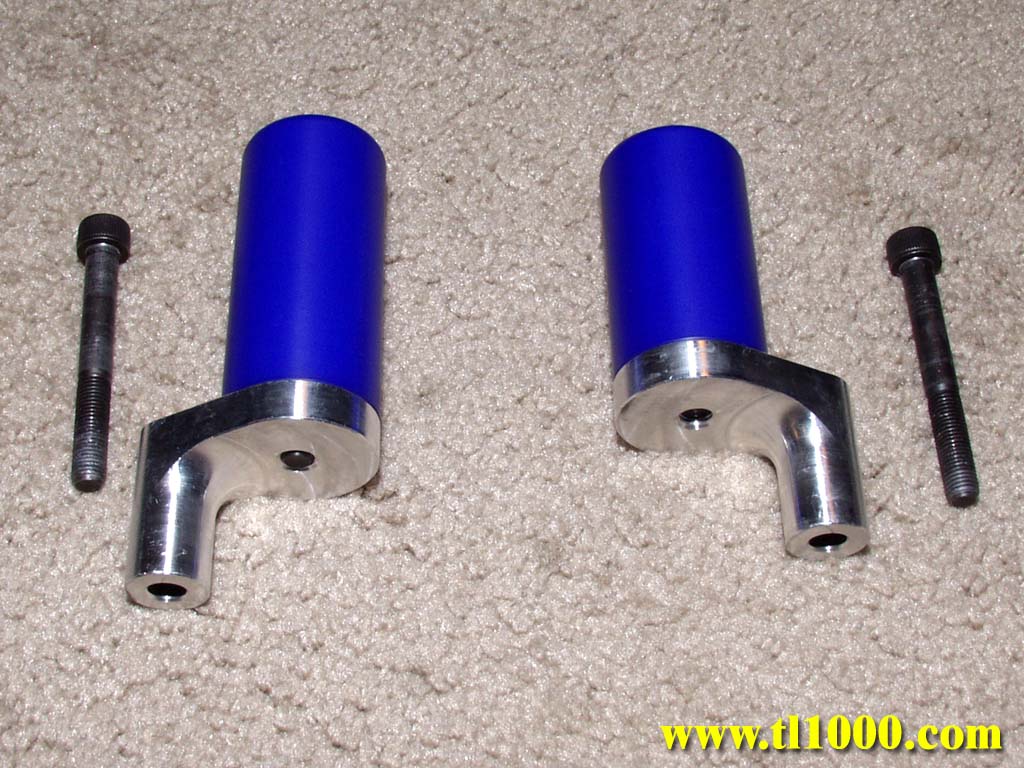

Here's what you get in the kit

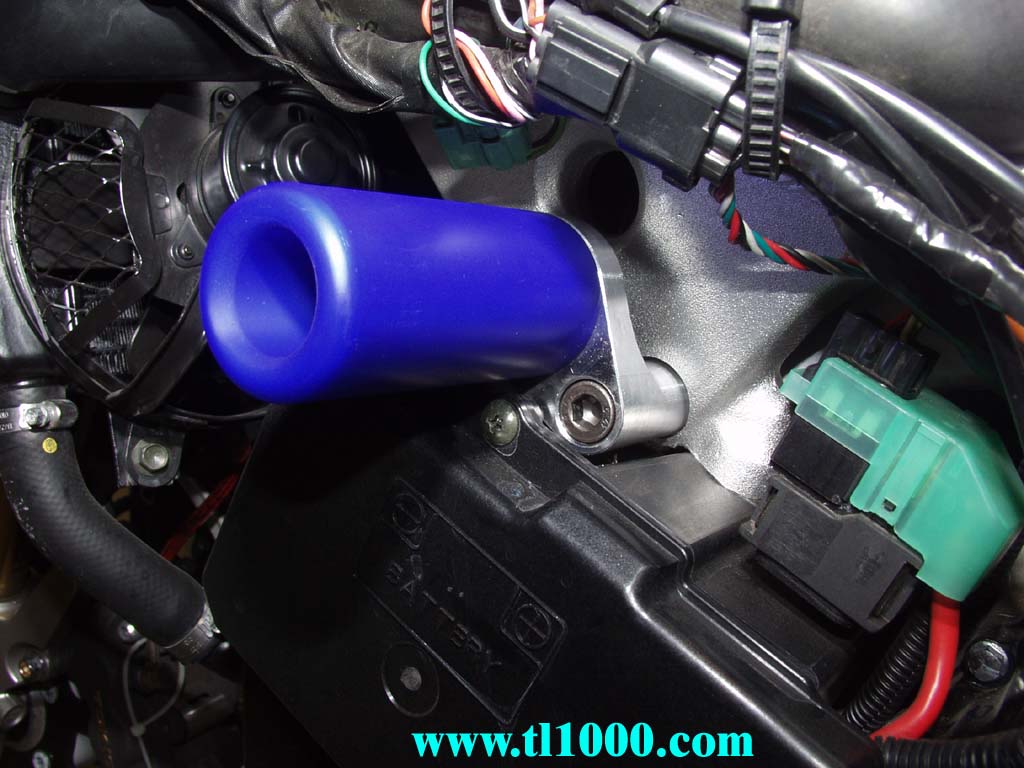

Left side installed

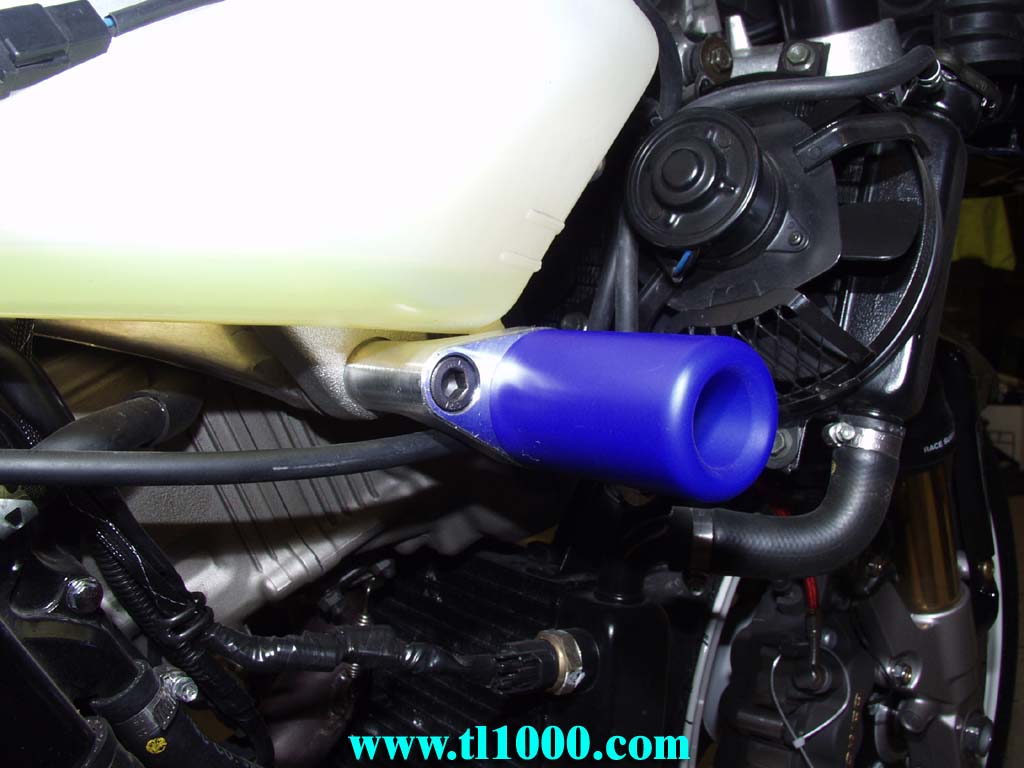

Right side installed
